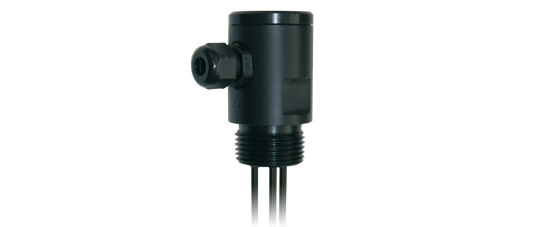

Conductive electrode / Rod probe SAT

Application description

The SAT rod probes are used in conjunction with the evaluation units (eg, SRA-100-U0) is used for level detection and level control in conductive liquids.
Depending on the number of bars and evaluation devices used, different measurement tasks such as Overflow, dry run, two-step control, moisture detection, etc. are realized.
Depending on model selected can include the container wall as a mass, to be implemented to 7 switch points. The ground connection erflogt either directly to the container or conducting a probe rod.
In the probe head, an additional module (diode module LBM) for permanent circuit monitoring to be installed.

In the case of a line break between the electrode probe and an appropriate evaluation, the evaluation issue an alert.
