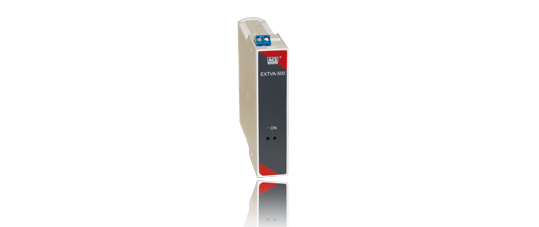

ExTVA-500-UC

• Sensor supply for 4…20mA devices
• Bidirectional HART® signal transfer and communication plugs for sensor parametration per HART® communication
• Compact rail fastening housing 22,5mm
• 20…253V AC / DC wide range supply
• Certification for connection of intrinsically safe devices [EEx ia] IIC

Application description

Connection of 2-wire-measurement transmitter, e.g. for elimination of ground loops.

The isolation amplifier ExTVA-500-UC supplies the sensor with auxiliary energy and transmits the 4…20mA measurement signal to the output. A bidirectional HART communication with SMART-transmitters is possible. The optional intrinsically safe input circuit fulfills die ignition protection class intriniscally safe (i)a
