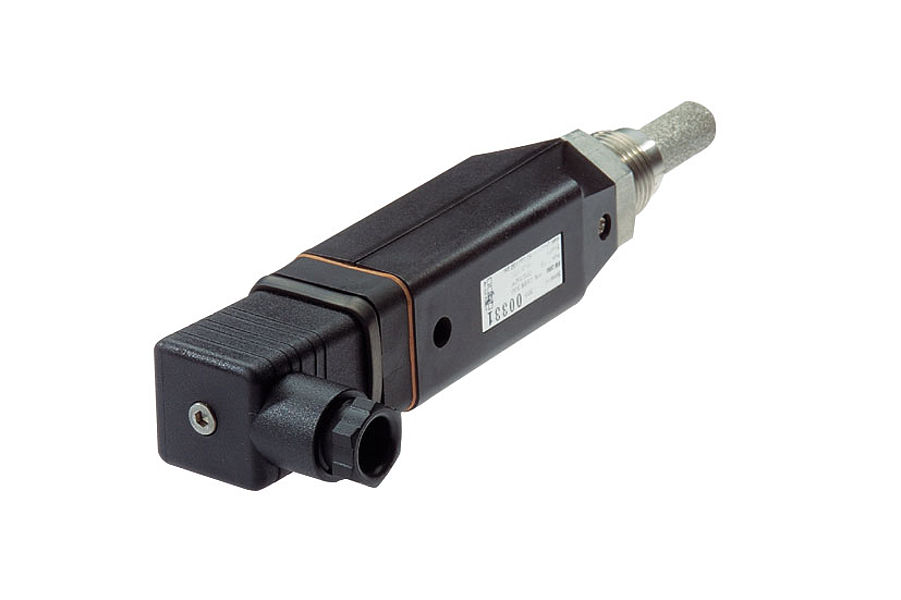

FA 300-2 Ex – Dew point sensor with ATEX approval for Zone 1

measures the dew point resp. the pressure dew point in explosive areas of Zone 1. Protection class: FA 300-2 Ex: I 2G Ex ia II C T4.

With the ATEX approval for Zone 1 the established dew point measuring instruments FA 300-2 can now be used in explosive areas of the industry as well.

FA 300-2 Ex may only be used in connection with approved Ex-rated power supplies or safety barriers or galvanic separating elements with max.:

U0 = 30 V max.

I0 = 100 mA max.

P0 = 1 W max.

• Robust design
• Pressure-tight up to 300 bar
• Long-term stable humidity sensor, approved for years
• 4…20 mA analogue output in 2-wire system
• Further parameters adjustable via software: % RH, g/m³, mg/m³, ppm, V/V, g/kg
• CS Service Software for data storage and calibration (no approval for explosive areas)
