Flowcont® TGF

www.measuremech.in

Advantages

  • Nominal width range from DN 150 up to DN 2000
  • Easy operation and setting of the process parameters directly at the measurement converter
  • Factory calibration – no calibration necessary
  • Automatic system supervision with error diagnosis in plain text and indication by contact output
  • Absolute zero stability
  • Max. measurement deviation:
    • at partial filling 3 % resp. 5 % of the measurement value,
    • at complete filling 1 % of the measurement value
  • 2 freely configurable switching outputs for forward / backward indication, limit alarm for flow
  • Certificated for the use in explosive hazardous areas

Application description

With the magnetic-inductive flow meter Flowcont® TGF the flow of liquids and sludge with an electrical conductivity from 50 µS/cm up to 10 mS/cm also in partial filled pipelines can be exactly measured.

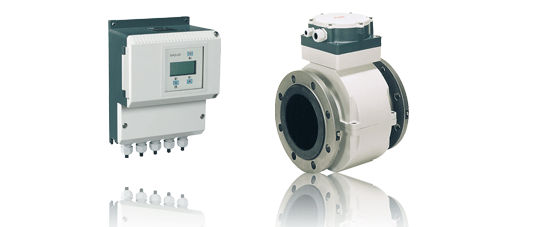

The Flowcont® TGF consists of a sensor and a separate measurement converter has the following design characteristics:

  • Especially suitable for flow measurement partial filled pipelines (e.g. at rain restraint basins, sewage plant inlet and outlet)
  • Independent from backwater in partial filling range
  • Short inlet and outlet length
    5 x DN bevor uad 3 x DN after the measurement device
  • Minimum partial filling heigth10 % of the sensor nominal width
