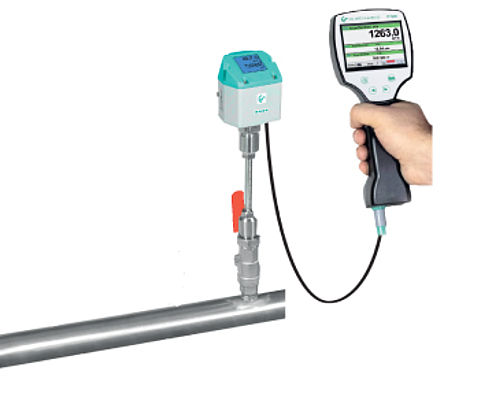

PI 500 – for portable flow measurement

The PI 500 is an all-purpose hand-held measuring instrument for many applications in industry like e.g.:

• Flow measurement
• Pressure-/ vacuum measurement
• Temperature measurement
• Moisture/ dew point measurement

The graphic indication of coloured measurement curves is inimitably.Up to 100 million measured values can be stored with date and name of measuring site. The measured values can be transferred to the computer by means of a USB stick. The data can be comfortably evaluated with the CS Soft Basic software. Measured data and service reports can be issued easily and quickly. The following sensors can be connected to the freely configurable sensor input of PI 500:

• Pressure sensor (high and low pressure)
• Flow sensors, VA 400/ VA 420
• Temperature sensors Pt 100, Pt 1000 / 4…20 mA
• Dew point sensors FA 410/ FA 415
• Effective power meters
• Opitonal third-party sensors with the following signals: 0…1/10 V, 0/4…20 mA, Pt 100, Pt 1000, pulse, Modbus

• Universal sensor input for lots of common sensor signals
• Internal rechargeable Li-Ion batteries (approx. 12h continuous operation)
• 3.5″ graphic display / easy operation via touch screen
• Integrated data logger for storage of the measured values
• USB interface for reading out via USB stick
• International: Up to 8 languages selectabel
