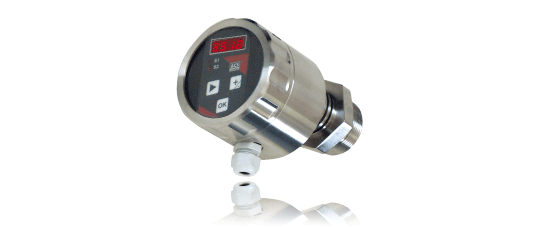

Precont® D40

Advantages

• Insensitiveness at high air humidity and at condensed water formation
• High precise pressure measurement -1…16 bar, relative
• Up to 40-times overload resistance
• Process temperatures from -40°C to +125°C
• Rugged design – maintenance free
• Electronic rotateable by 330 degree
• 2-wire 4…20mA or 3-wire 0…10V technology
• 2 PNP switching outputs
• 4-digit LED display
• Integrated signal linearization with up to 25 linarization points
• Fast adjustment by key combination or menue guided adjustment by LED display
• Password protection
• Certification for the use in explosive hazardous areas

Application description

The Precont® D40 is used in all fields of proceeding and process technique.
The excellent characteristics like pressure strength, high chemical resistance, corrosion protection and insensitivity against temperature shocks allows the use in the hardest applications for the measurement of gases, steams and liquids.

By the special contruction the device is especially suitable for the use in areas witht hight air humidity and at condensed water formation where conventional devices can not or can only be used with an expensive placed air compensation capillary.
