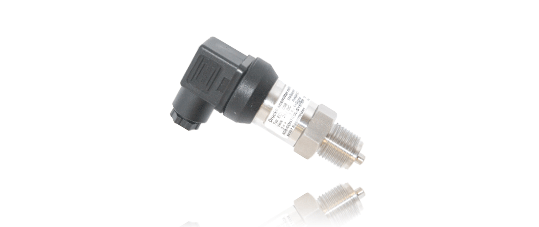

Precont® ECO

Advantages

Supply: 24V DC ± 10%
Output signal: 4-20mA; DC
Short circuit and reverse polarity protection
Nonlinearity: <= 1% of full scale
Hysteresis: <= 0,5% of full scale
Process connection: G1/2″ A acc. to DIN 16288
Electrical connection: plug acc. to DIN 43650
Protection class: IP65

Application description

The pressure transmitter series Precont® ECO are capable of measuring absolute pressure and overpressure and vacuum in gases, steams, liquids and dusts.

Through the ceramic membrane in conjunction with the process connection in stainless steel, good resistance to aggressive media is guaranteed.

As outputs 4-20mA 2-wire with variants, 0-20mA and 0-10V 3-wire are available.

The electrical connection occurs via a connector according to DIN 43650 design A.
