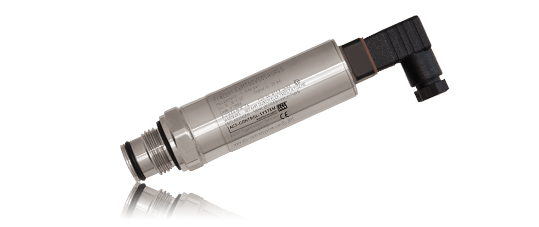

Precont® MT

Advantages

• Pressure ranges -1…1000 bar
• Metallic membrane for various applications
• Suitable for a wide process temperature range from -40 °C to +100 °C
• ATEX II 1 G EEx ia IIC T6 – Certification for the use in explosive hazardous areas
• Shortest response time and good accuracy up to 0,5%
• Integrated evaluation electronic
  • in 2-wire-technology with current signal 4…20 mA
  • in 3-wire-technology with voltage signal 0…10 V

Application description

The device Precont® MT with integrated analogue evaluation electronic is a compact pressure transmitter for continuous measuring of pressures from –1 up to 1000 bar in gases, vapors, liquids and dusts within closed container or pipes, also in explosive hazardous areas, at process temperatures from – 40°C to +100°C.

The use of a strain gauge with metallic membrane and the corresponding excellent characteristics, allows the use in nearly all fields of industry.

Function description

The device is mounted in the wall of the pressure container or of the pipe.

The system pressure is applied to the metallic membrane and causes there a deflection of the polysilicone resp. thin film strain gauge at the back side of the membrane. At measuring ranges of 0…25 bar and smaller, the pressure is transmitted by a pressure transmitting liquid to the polysilicone strain gauge.

The metallic membrane offers excellent characteristics like high pressure and pressure blow strength up to five times the nominal pressure, vacuum resistance, good reproducibility and hysteresis and also good long term stability and a low temperature influence.

The pressure dependent variation of the strain gauge output voltage is converted by the integrated evaluation electronic into a current signal 4…20 mA resp. voltage signal 0…10 V.
