Precont® TN 10

        Advantages

• Finely graded pressure measuring
• Ceramic membrane for various applications
• Process temperature range from – 40 °C to +125 °C
• Accuracy up to ≤ 0,1%
• Xcellence type – Accuracy up to ≤ 0,05%
• Integrated evaluation electronic
• 4x PNP switch output
• Bluetooth-Interface
• Enclosure and display rotateable for optimal operability in each installation position
• Viewing angle optimized TFT-LCD display for best readability
• Easy handling by clear menu navigation
• Extensive diagnostic functions for system analysis

Application description

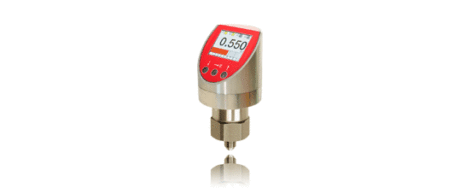

The devices of the series Precont TN10 with integrated digital evaluation electronic are compact sensors for measuring and monitoring of pressure levels.
The excellent characteristics like highest strength against pressure and pressure blows, high resistance against chemicals and corrosion, very good insensitiveness against temperature shocks and EM interference, highest accuracy and long term stability and also low influence of temperature makes it possible to use the sensor in all pressureless containers for liquid medium like water, waste water, solvents, oil, sludge, grease, cleaning agents, etc.
