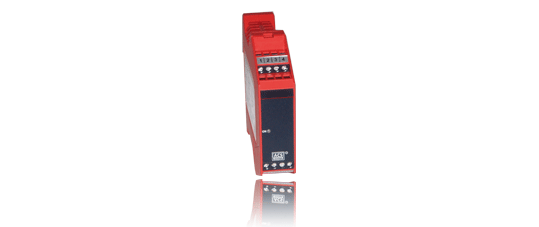

TVA-180-U0

• Input
  • 0..10V
  • 0..20mA
  • 4..20mA
• Outputs
  • 0..10V
  • 0..20mA
  • 4..20mA
• Galvanic isolation with 4kV~
• 20…253V AC / DC wide range supply

Function description

The isolation amplifier TVA-180-U0 is conceived for assembly on rail fastening appropriate to DIN EN 50022 – 35.

Because of the integrated wide input power supply for supply voltages from 20…253V AC and DC, the supply isolation amplifier is suitable for using in all common international energy supply networks.

The activation of the device is signalled by a front sided integrated green LED.
The current or voltage signal is supplied to the input of the isolation amplifier and will than be transferred galvanically isolated to the output
