Advantages
measurement range:
Liquids: USN 020: 2m; USN 050: 5m; USN 080: 8 m; USG 150: 15 m; USG 250: 25 m
Solids: USN 020: 1m; USN 050: 2m; USN 080: 3,5 m; USG 150: 15 m; USG 250: 25 m
process temperature range from – 40 ° C to +85 ° C
weather resistant and flood-proof (IP68)
low blocking distance
TFT-Display
analog output 4-20 mA and a PNP switching outputs
accuracy ≤ 0,2%
high range
easy installation and operation Inbetriebnahme due to well-arranged menu
easy installation and operation due to well-arranged menu
large display – values readable from far away
Data logger for recording of measured values
Excellent presentation of the measured values
Clear text menu navigation
Hermetically sealed PVDF sensors, for the highest chemical resistance
Integrated temperature sensor for time correction
the sensor Sonicont USG can be installed up to 30m from the transmitter Sonicont USF
application

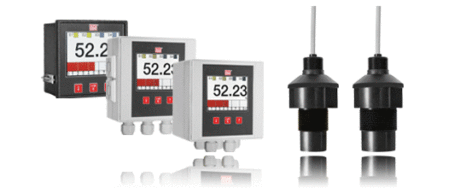

With the Sonicont USF and USG provides ACS-CONTROL-SYSTEM GmbH an ultrasonic level transmitter remote version for non-contact level measurement of fluids, pastes and coarse bulk materials before. By long life, easy installation and less maintenance, the ultrasonic measuring system is a proven and cost-effective solution.
Combined with up to 4 freely adjustable switching points and suitable for measuring ranges up to 8m in liquids and up to 3.5 m in bulk materials (on request up to 25m in liquids and up to 12m in solids), this sensor can be used for various measuring tasks for volume linear display in all container types – and with an accuracy of 0.2% and ≤ 2 mm. In addition, the analog output 0 (4) … 20 mA and 0 .. 10V is switchable. The modern transmitter has extensive diagnostic functions for system analysis and still allows easy setup and operation by clear menu guidance.
Besides level measurements the Sonicont USG and USF is able for measurement of flow rates and currents. The mathematical formulas are already stored in the device. The sensor Sonicont USG can be installed up to 30m from the transmitter Sonicont USF and has IP68 protection. The 2 „TFT color display of the Sonicont USF provides an excellent representation of the measured values and easy readability. Intelligent data management enables the Sonicont USF to record measured values through the Bluetooth interface and a built-in data logger function.
function
For measurements in liquids and solids non-contact level measurement with ultrasound is a proven and cost-effective method. The lack of contact with the medium ensures a long service life and thus a permanent and reliable measurement.
