Advantages
- 12 different standard measurement ranges or adjustment by customer specification
- Output 0..10V, 0..20mA or 4..20mA
- Galvanic isolation with 4kV~
- 20…253V AC / DC wide range supply
Application description

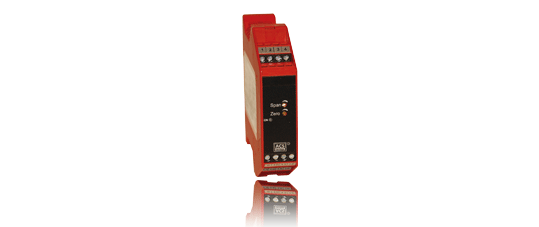

The Pt100 signal converter WTAU-120-U0 is used to convert a Pt100 resistance signal galvanically isolated into a standarized signal.
Function description
The Pt100 signal converter WTAU-120-U0 is conceived for assembly on rail fastening acc. to DIN EN 50022 – 35. Due to the integrated wide input power supply for supply voltages from 20…253V AC and DC, the signal converter is suitable for using in all current international energy supply networks.
The activation of the device is signalled by a front sided integrated green LED. The Pt100 resistance signal is feed to the input of the signal converter and is transferred galvanically isolated to the output stage
