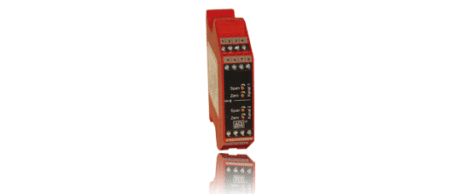

WTAU-200-U0

Advantages

  • Input from -100°C … +600°C, free adjustable
  • 2x Output 0..10V and simultaneous 0..20mA or 2..10V and simultaneous 4..20mA
  • Galvanic isolation with 4kV~
  • Signal adjustment of zero and span
  • 20…253V AC / DC wide range supply

Application description

The Pt100 signal doubler WTAU 200-U0 is used to convert a Pt100 resistance signal galvanically isolated into two standarized signals and to adjust them in the zero value and/or span.

Function description

The Pt100 signal doubler WTAU 200-U0 is conceived for assembly on rail fastening acc. to DIN EN 50022 – 35.

Due to the integrated wide input power supply for supply voltages from 20…253V AC and DC, the signal converter is suitable for using in all current international energy supply networks.
